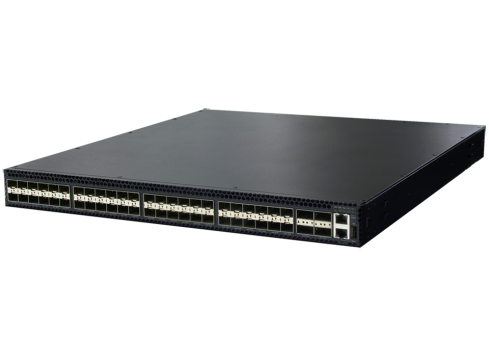

AS5600-52X

Edgecore Network Connectivity Open Networking

Cost-effective, bare-metal switch infrastructure for data center fabric.
48 x SFP+ switch ports, supporting 10 GbE (DAC, 10GBASE-SR/LR/ER/LRM) or 1 GbE (1000BASE-T/SX/LX).
4 x 40 QSFP switch ports, supporting 40 GbE (DAC, 40GBASE-SR4/LR4) or 4 x 10 GbE (DAC or fiber breakout cable).
Port Grouping to group 4 x 10G ports into one 40G port at the physical layer for maximum bandwidth utilization, and for 300m optical reach over MMF.
Full line-rate Layer 2 or Layer 3 forwarding of 1.28 Tbps
Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.
All ports on front; PSUs, fan tray on rear.
Hot-swappable, load-sharing, redundant AC PSUs. 48VDC* option.
Swappable fan tray with 3:1 fans.
Energy Efficiency: 196 W typical power consumption.
Management: Ethernet and console RJ-45 ports; USB storage port.
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible independent SwitchOS software.
Compatible with Cumulus®Linux® r1.5.0 and later SwitchOS software from Cumulus Networks™.
Compatible with PicOS™ r2.4 and later version from Pica8 Inc.

Ports	48
Predominant Port Type	10GbE SFP+
High Availability	Redundant Power Supply Redundant Fans
Compatible Software Option	Cumulus Networks - Cumulus Linux Open Compute Project - Open Network Linux Pica8 - PicOS

Open Networking 10G

AS5600 Series: AS5600-52X
