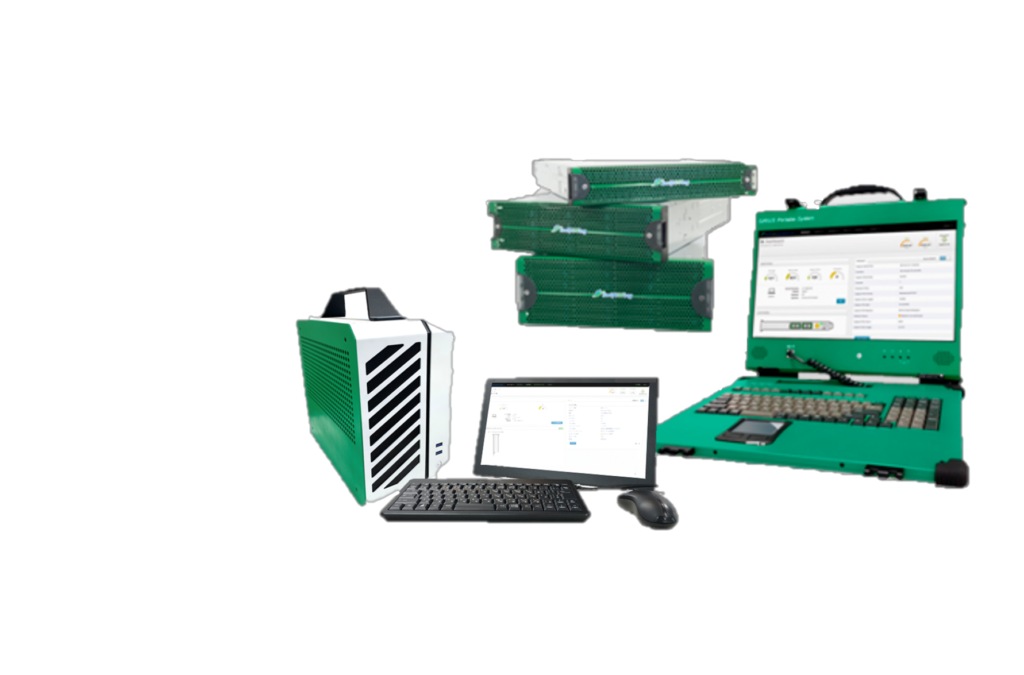

SIRIUS Network Drive Recorder · Your PCAP Power House
SIRIUS Stationary Appliance
For the most demanding tasks at Enterprise or Data Center level up to true lossless 100 Gbps full line-rate capture at any packet size. The 19″ systems, scalable by speed (1 to 100Gbps) and storage capacity up to 22 Petabytes.
SIRIUS Portable M
Perfect mobile solution for on-the-field packet capture, with 10M/100M/1G/10G/25G/40G/100G interfaces, capable of 55 Gbps capture performance. Available with a storage capacity up to massive 500 Terabytes.
SIRIUS Portable L
Perfect mobile solution for on-demand packet capture, with 10M/100M/1G/10G/25G/40G/100G interfaces, capable of 200 Gbps line-rate capture performance. Available with a storage capacity up to massive 960 Terabytes.
SIRIUS Portable Compact
The SIRIUS Portable Compact is a ultracompact, most portable system with 4x 1/10GbE or 2x 10/25/40/100GbE Interface, capable of 80Gbps accurate capture & storage. Storage capacity starts at
7.5 Terabytes.
Enhanced & Customizable Solutions with SIRIUS
- SwiftWing SIRIUS is a “solution oriented” packet capture platform for accurate big data analysis. We develop specific and targeted solutions for various business sectors.
- Beyond packet capture and management of the capture archive, SwiftWing SIRIUS represents the groundwork for several advanced requirements, e.g., integrating individual functions, special analysis programs or other 3rd Party applications.
Capture Storage Consumption
| Link Rate | 1 Second | 1 Hour | 1 Day |
|---|---|---|---|
| 1 Gbps | 125 MB | 450 GB | 10 TB |
| 2 Gbps | 250 MB | 900 GB | 22 TB |
| 10 Gbps | 1.25 GB | 4.5 TB | 108 TB |
| 20 Gbps | 2.5 GB | 9 TB | 216 TB |
| 40 Gbps | 5 GB | 18 TB | 512 TB |
| 100 Gbps | 12.5 GB | 450 TB | 1.08 PB |
Capture system that doesn’t stop
- SIRIUS offers a piece of mind by ensuring that your network monitoring data is captured and stored in a precise, redundant and reliable system.
- While capturing with and creating PCAP files to the storage, the storage space will be filled-up after some time depending on the capture rate.
- SIRIUS focuses on capture continuity by practicing PCAP file rotation policy where oldest file will be shifted out and replaced by latest file.
- Even if a given capture is stopped, it can be resumed and have all the PCAP files created to the same location, easing the export tasks while you captures are to be collected in separate locations, maximizing the portable solution.
SwiftWing SIRIUS can DO more for you.
Works seamlessly with industry leading monitoring and diagnostic solutions
Besides the With RESTful API, captures and stores data in standard PCAP and nanoseconds PCAP format which can be conveniently used by all other network monitoring, analysis tools and applications available in the market today.
